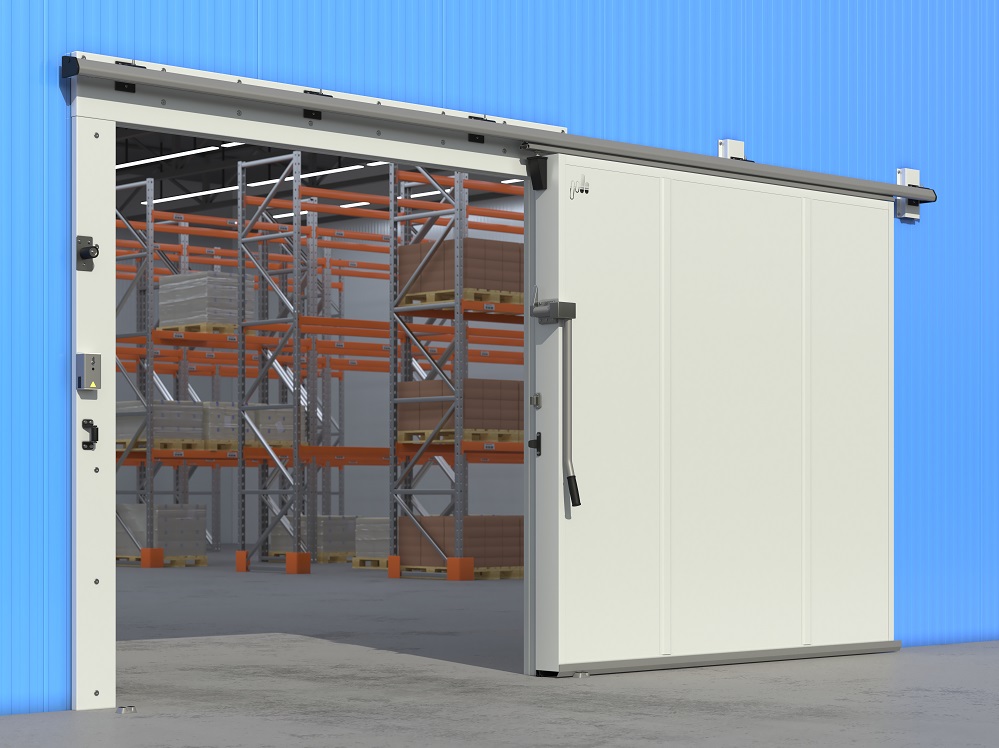

Sliding Fireproof Refrigeration Gates (SG EI)

Sliding Fireproof Refrigeration Gates (SG EI)

Gate leaf thickness: 120 mm

Fire resistant polyisocyanurate PIR core

Opening height: 1800 to 5000 mm

Opening width: 800 to 3000 mm

Fire resistance: EI30

Basic Information

PH Insulation’s Sliding fire resistant gates (SG EI) are designed to enclose and insulate openings in refrigerated spaces with high fire safety requirements. Fire resistance class – EI30.

Sliding gates are used in medium and low-temperature cold rooms, refrigerated warehouses, and spaces with high fire safety requirements.

In PH Insulation you can order sliding fire resistant gates in any colors and coatings.

The sliding gates for warehouses and refrigerated cold rooms are designed to operate at an ambient air temperature ranging from -45°C to +55°C and a relative humidity of no more than 80%.

Why Choose PH Insulation Sliding Fire Resistant Gates

1.       Fire resistance class – EI30

2.       Any RAL color, stainless steel, other coatings

3.       Gate leaf elements are made without cold bridges to prevent cold loss

4.       Gates can be installed in openings up to 3000 mm wide and 5000 mm high

Production Time

Your gate will be ready in 2 weeks from the moment the order is placed.

For delivery in Moscow and the Moscow region, we will arrange transportation within one day from the time the order is ready.

For delivery to other regions, we will arrange transportation within 2-4 days from the time the order is ready.

Types of Metal Coatings that are Used in the Manufacture of Sliding Fire Resistant Gates

·         Galvanized steel, painted with white polymer paint, RAL 9003 or you can order the gate leaf in any color of your choice according to the RAL catalogue

·         Galvanized steel without polyester coating. For universal use

·         AISI 430 all-purpose stainless steel

·         AISI 304 food grade stainless steel

Construction

The gate leaf is made up of one or several sandwich panels connected by fasteners. The joints are filled with fire-resistant foam, sealed with heat-resistant sealant, and covered with a metal plate on the outer and inner sides. Additionally, 2 mm thick u-shaped steel channels are installed at the leaf edges to reinforce the load-bearing capacity and integrity of the leaf.

The gates are made using sandwich panels with a three-layer construction:

- 0.5-0.8 mm thick steel galvanized painted metal or stainless steel sheets

- insulation made of fire-resistant PIR polyisocyanurate foam. PIR density - 45 kg/m3, thermal conductivity - up to 0.03 W/K-m

- fire-resistant materials

Double contour of thermal insulation seal and thermal expansion tape are installed along the inner perimeter of the gate leaf. In case the temperature increases to over 150°C the tape expands and fills the gap between the gate leaf and the frame, preventing the spread of smoke and fire in neighboring rooms.

The gate leaf is assembled only with fireproof sealants and foams.

SG EI’s frames in the low-temperature version are supplied with heating cable to prevent freezing of the sealing profile. All components of the sliding gate leaf for warehouses and cold rooms are designed without cold bridges to prevent heat loss.

The gates are wrapped in 50 μm thick film to prevent damage when transporting or mounting, the film is easily removed after the installation.

Please note that the overall dimensions of the metal frame depend on the size of the light opening:

·         Frame width = width of light opening + 400 mm

·         Frame height = light opening height + 280 mm + sill height

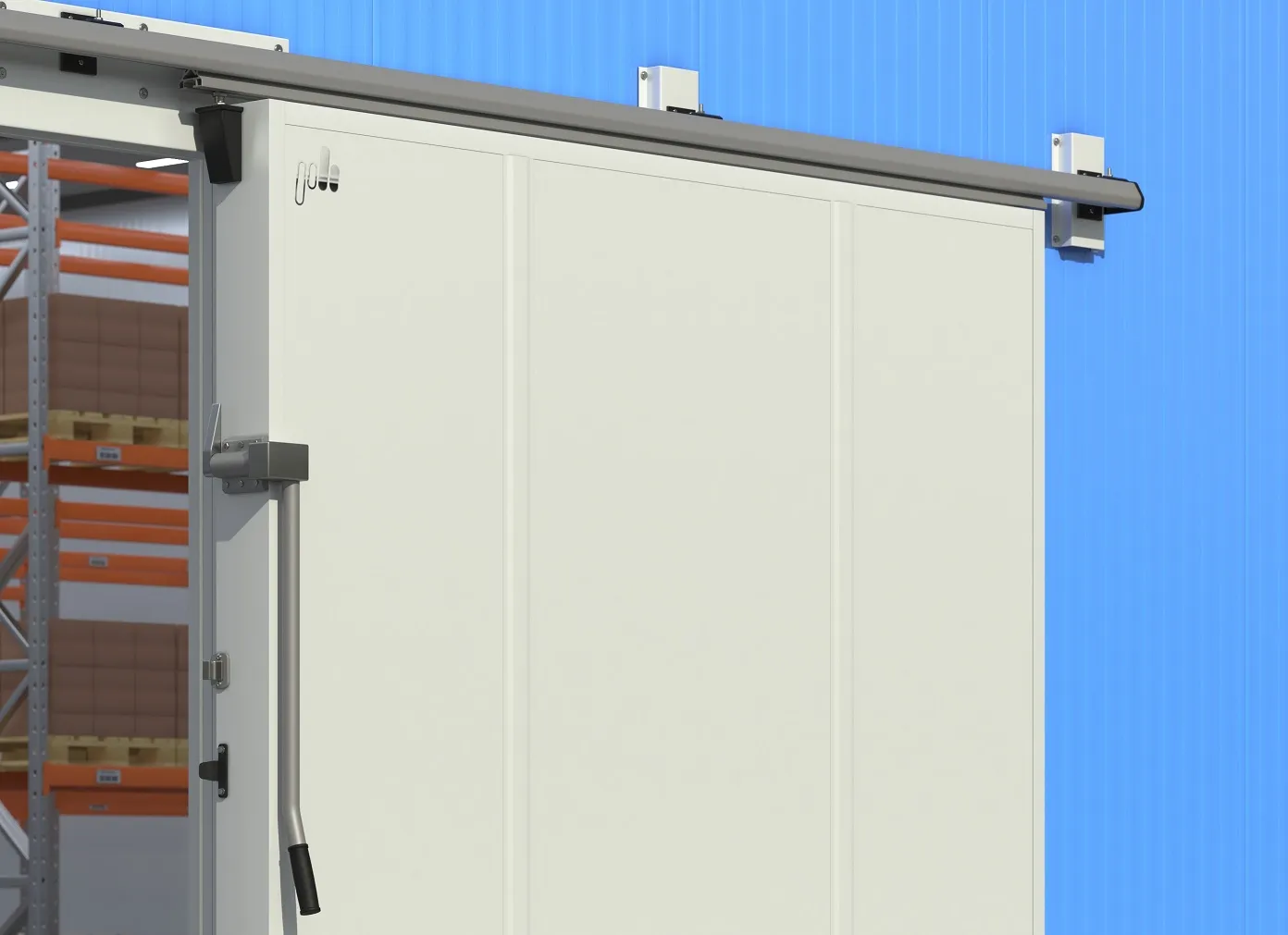

Gate Hardware

Sliding Fire Resistant Gates are equipped with hardware by top French door hardware manufacturer Fermod and hardware by PH Insulation.

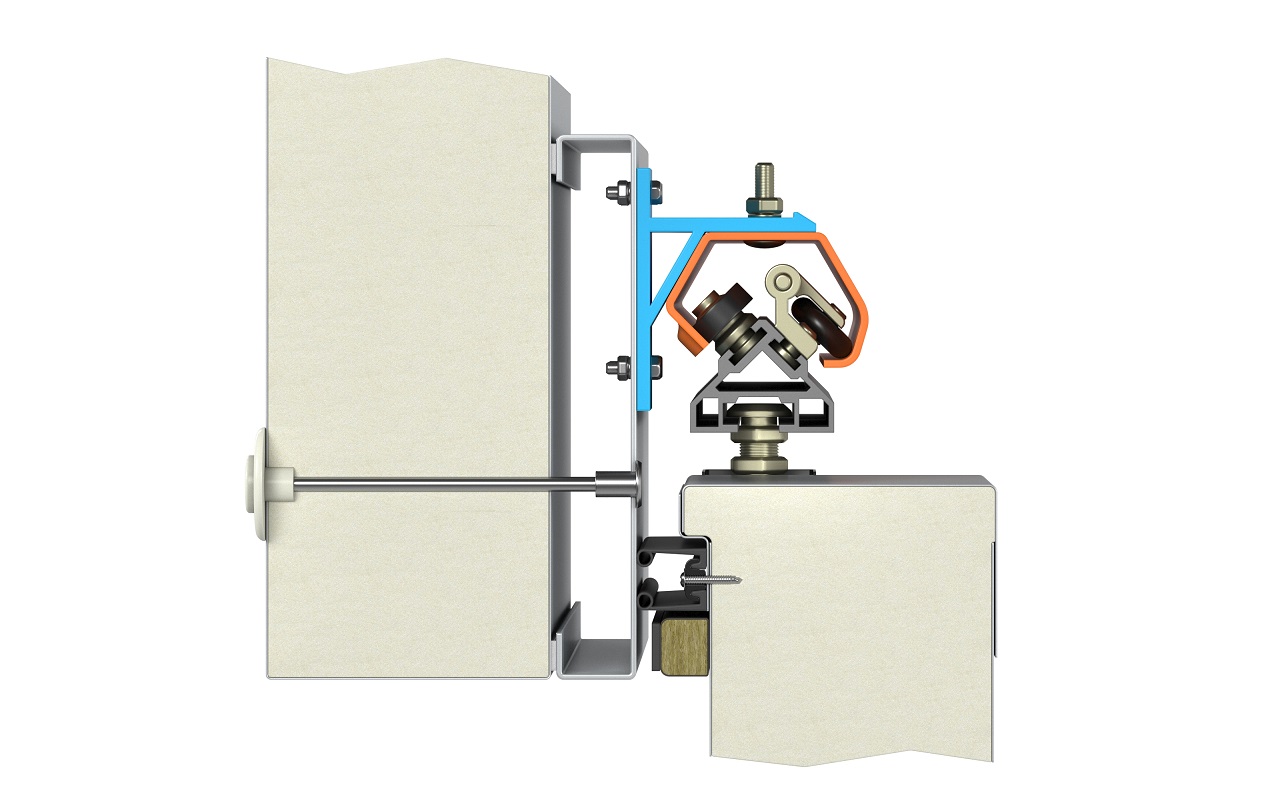

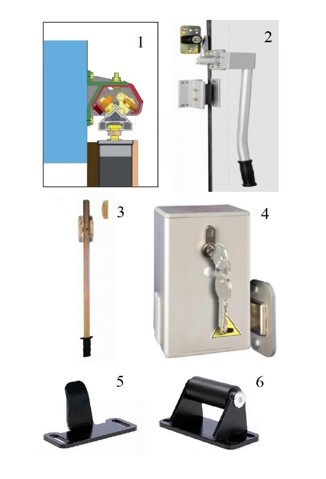

1 – Fermatic 3500 guide system

2 - Fermod 4440 external handle

3 – Fermod 4440 internal handle

4 - Fermod 57 sliding door lock

5 – PH Insulation lower guide grip

6 – PH Insulation lower guide stop

Attention! To ensure trouble-free operation of the hardware and to extend service life of the gate, perform routine inspections at least once every two weeks. The inspection should include checking for adjustments, tightening fasteners, and ensuring the presence of lubricant on the rubbing surfaces.

Supply Set

The basic configuration of SG EI includes:

1.       Gate leaf made of galvanized metal with RAL polymer coating at least 0.5 mm thick according to the dimensions of the light opening.

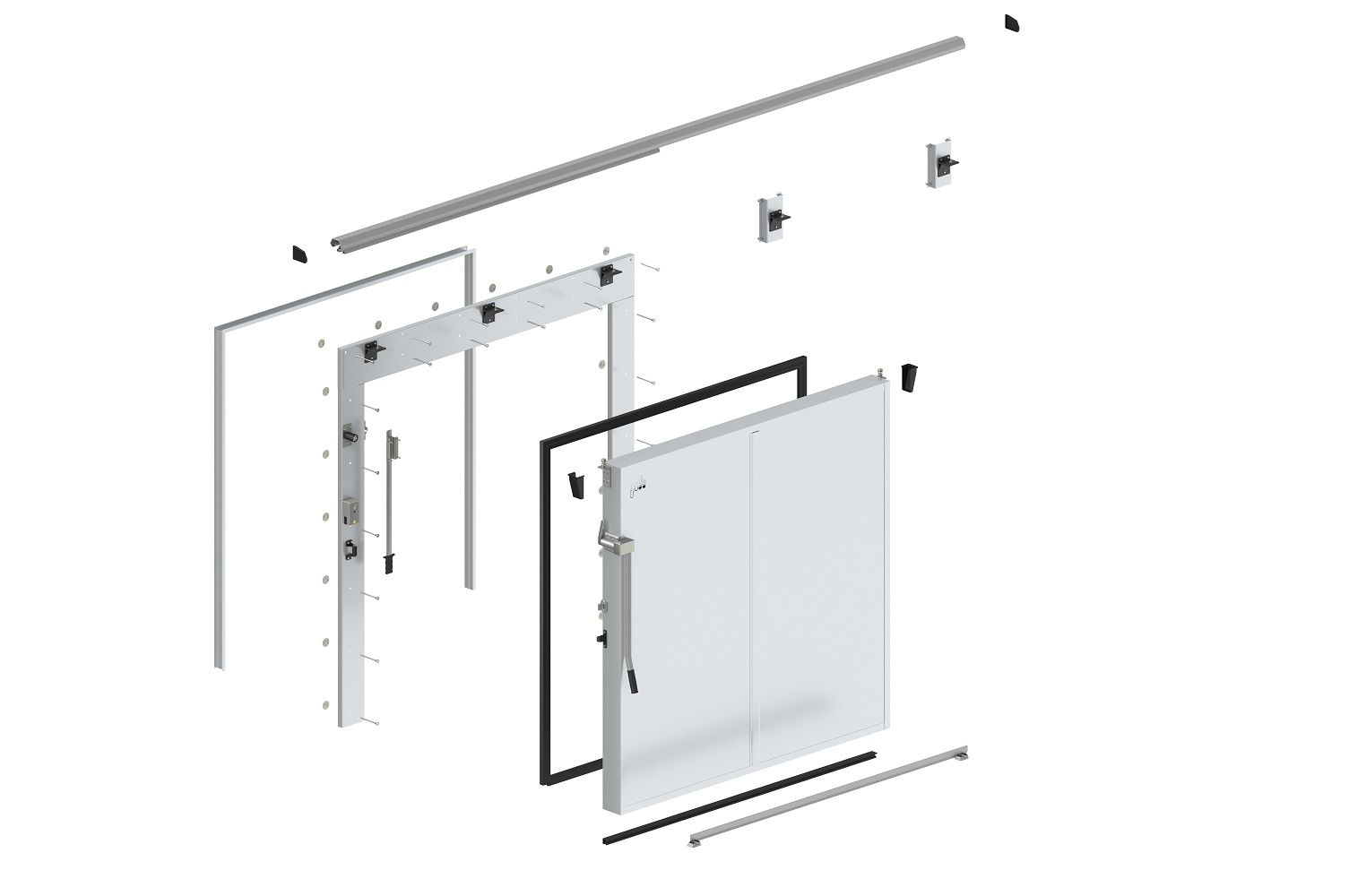

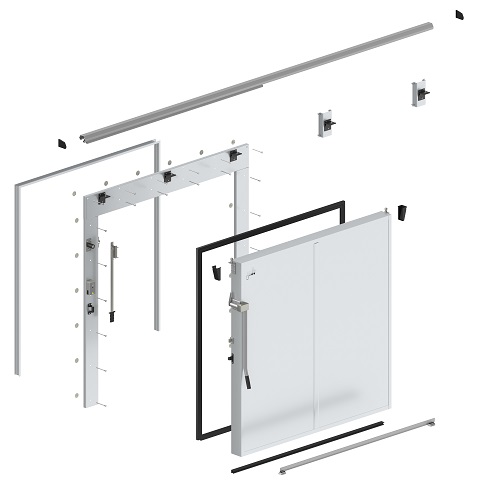

SG EI size range (in multiples of 10 mm)

2. Surface-mounted metal frame constructed from 2 mm thick cold-rolled steel sheet, coated with powder enamel paint in RAL color.

3. Guides

Additional Options

Possible additions to the standard design:

1. Gate leaf made of AISI 304 or AISI 430 stainless steel

2. Metal frame made of 2 mm thick AISI 304 or AISI 430 stainless steel

3. Metal frame heating cable

4. Mounting kit for fixing the gate frame to sandwich panels, metal structure or brick wall

5. Hidden fasteners
